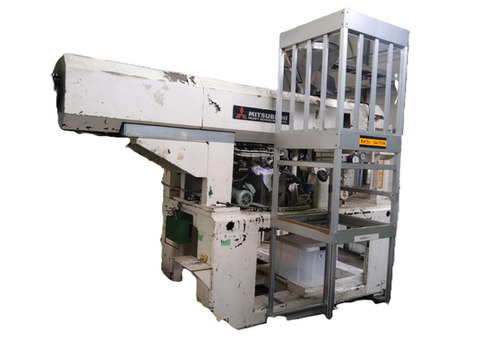

Product name: Mitsubishi Heavy Industries seat molding line
Manufacturer: Mitsubishi Heavy Industries
・Year: 1995
・Screw diameter: 90mm
・L/D: 29
・Screw rotation speed: 7.2 to 72.2 rpm
Screw motor: Toyo Denki: DC 45kW/1750rpm
Heating method: heater
・Cooling method (cylinder only): Water cooling
・Temperature control zones: 16

T-die
Lip width: 720mm
・Adjustment bolts: 23
・Fixed: with gate

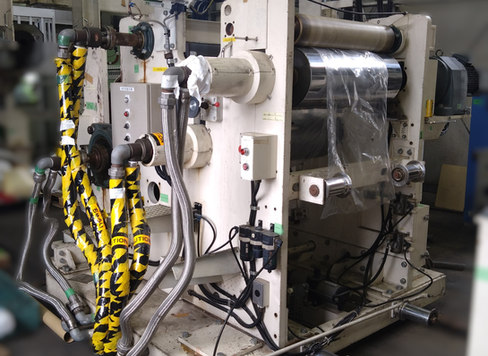

molding machine
・1 to 10 m/min (all rolls MAX. 10 m/min)

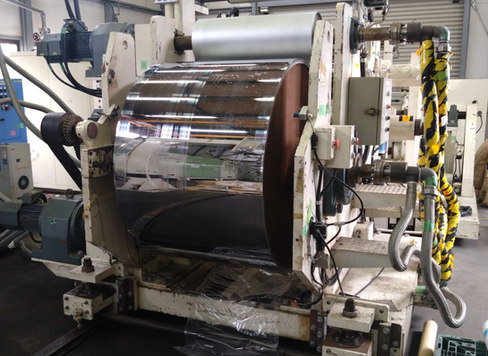

roll
・Casting roll: φ1200
・No.1 annealing roll: φ300
・No.2 annealing roll: φ300
・Take-off roll: φ300
・Casting roll: 2.2kW
・No. 1 annealing roll: 0.75kW
・No. 2 annealing roll: 0.75kW
・Take-off roll: 0.75kW

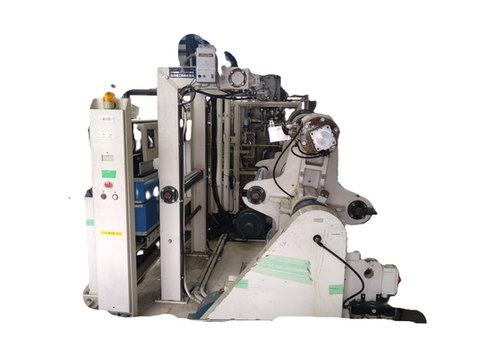

Winding machine
Winding width
・Maximum winding thickness: 520mm
・Machine speed 0.25mm
・Roll face length 1 to 10 m/min
・Maximum winding diameter 800mm
・Winding tension φ700mm
- Tension control system: MAX. 10 kgf/full width
・Indirect tension control by mechanical loss calculation for winding method
・Rewinding method: 2-axis turret center drive type
Manual winding by hand cutting
